Universal Adjustable Defrost Timer DS-All Can Replace All The Models of Defrost Timer

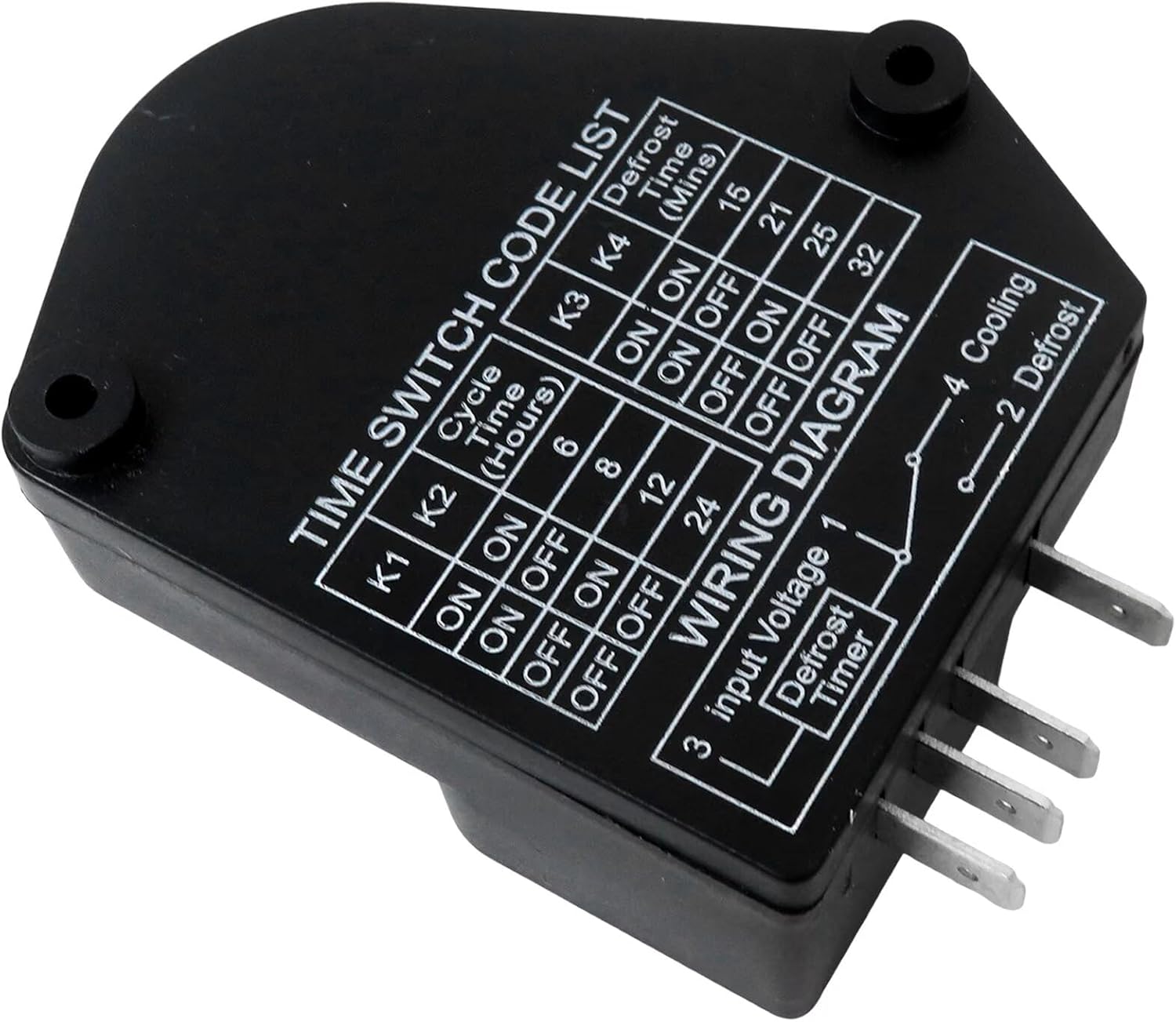

Smaeti Universal Adjustable Defrost Timer DS-All Can Replace All The Models of Defrost TimerInstallation: Make selection of operating cycle and defrost cycle according to option in the above graph. Electric diagram is in front of the Universal Timer, Terminals 1 and 3 are for power in and terminals 2 and 4 will control operating and defrost cycles. After 6 seconds of completing the Installation you can choose to start the timer on a defrost or operating cycle by pressing the reset button. A: Press 1 time and the Universal Timer will start on the defrost cycle. B: Press 2 times and the Universal Timer will start the compressor operating cycle. Input Voltage: 90-250VAC/50-60Hz T1-3 Max current operating cycle: Defrost 8A T1-2,Cooling 5A T1-4 Max current defrost cycle 5A Adjustable Timing:Defrost Time 15,21,25,32 min,(+/-1s),Cycle Time 6,8,12,24 hr.(+/-20s) Power consumption 1W Applicable Environmental Temperature:0°-160℉(-18℃-71℃)

• Smaeti Universal Adjustable Defrost Timer DS-All Can Replace All The Models of Defrost Timer
• 【Universal Replacement】 Defrost timer is a universal electronic timer, which can be used to replace the timer. It can directly replace timers for Whirlpool, for Paragon and for Invensys.
• 【Fitment】 Replace the defrost timer for SUPCO refrigerator to meet or exceed specifications.
• 【Quality & Application】 High quality and long-lasting, it is a popular choice for maintenance technicians and DIYers.
• 【Technical Specifications】 Input Voltage: 90-250VAC/50-60Hz T1-3; Max current operating cycle: Defrost 8A T1-2, Cooling 5A T1-4; Max current defrost cycle 5A; Adjustable Timing: Defrost Time 15,21,25,32 min,(+/-1s), Cycle Time 6,8,12,24 hr.(+/-20s).
