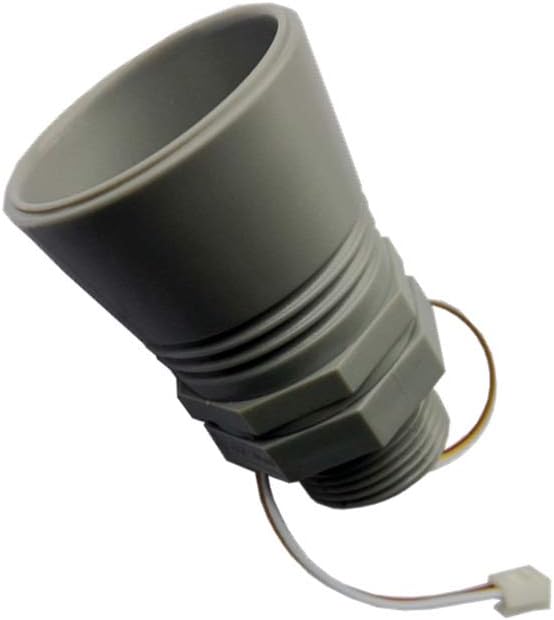

Taidacent Customizable Water Level Detector Using Ultrasonic Sensor Height Sensor for Measurement Water Level Detector Sensor Compatible with Detect Well Manhole Cover (PWM Processing Value Output)

Product model: DYP-A07-V1.0 Measurement accuracy: ± (1 + S * 0.3%) Working voltage: DC3.3V-5V Average current: 15mA Temperature compensation: Yes Measuring range: 25cm-800cm Output method: UART automatic output / UART controlled output / PWM processing value output / Switch output NO.1 is not affected by the environment Suitable for a variety of application environments, not affected by the color, transparency, and material (metal, non-metal) of the detection object; NO.2 low power design Can reduce power consumption to a minimum Adopt intelligent signal processing circuit, can reduce power consumption to a minimum according to the actual application; NO.3 professional logging application Professional detection mode Specialized in logging mode, built-in target recognition algorithm, high target recognition accuracy. The transducer can be treated with anti-corrosion, and the protection level is high. Product details Waterproof probe Integrated waterproof design, protection grade up to IP67 Trumpet structure The measurement angle is smaller and the measurement distance is longer.

• Measurement accuracy: ± (1 + S * 0.3%)
• Working voltage: DC3.3V-5V
• Average current: 15mA
• Temperature compensation: Yes
• Measuring range: 25cm-800cm
