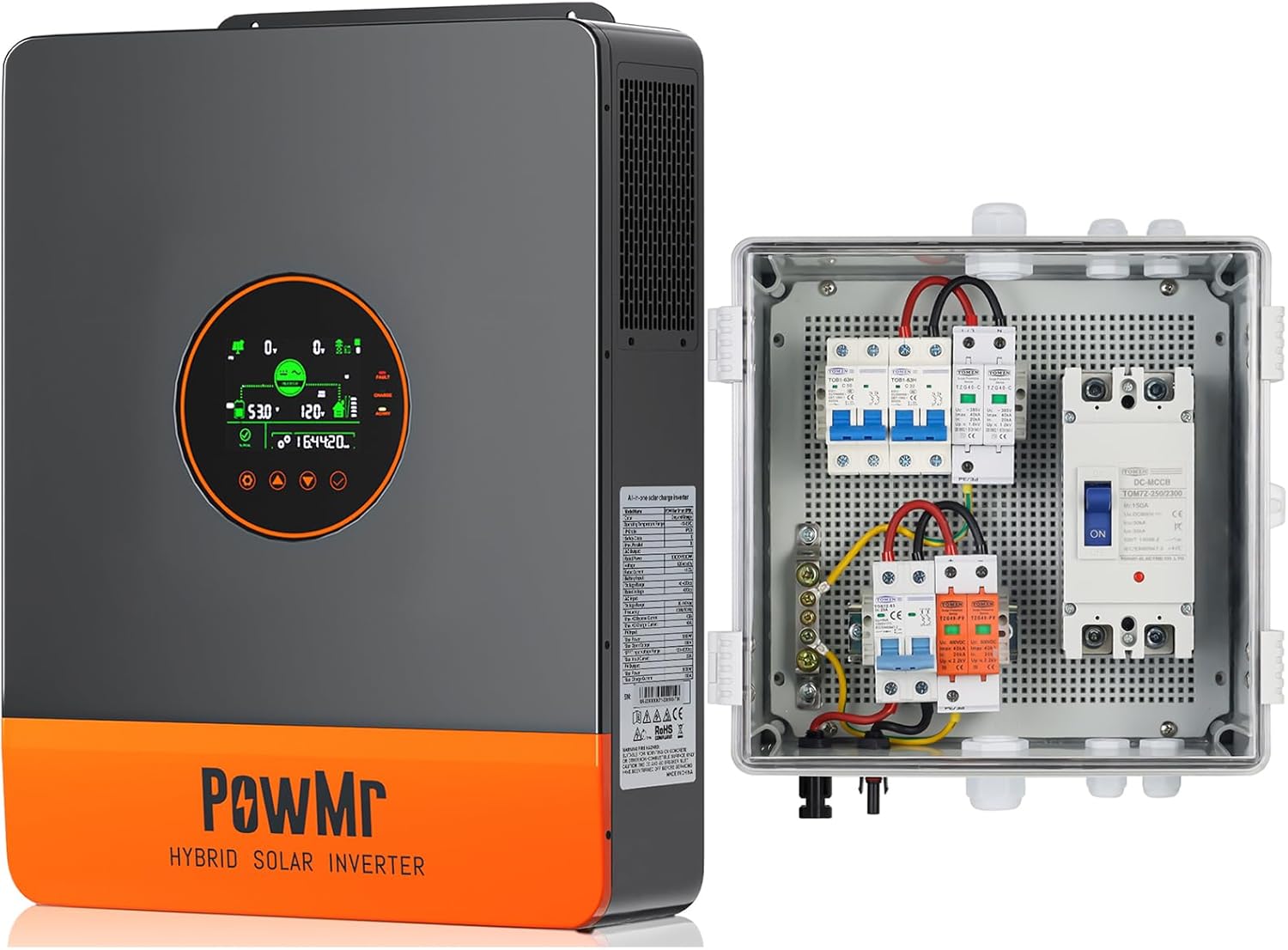

PowMr 5200W Split-Phase Solar Inverter 48Vdc to 110Vac Built-in 100A MPPT Controller & Solar Distribution Box

5200W Split-Phase Solar Inverter 48Vdc to 110Vac，Max.PV Input 6KW, 500V VOC & Solar Distribution Box

• 【5.2KW Hybrid Inverter | 99.9% MPPT Efficiency | 20ms Grid Switching】 5200W Pure Sine Wave Output + 100A MPPT Controller + 6000W Max.PV Input all-in-one design. 120-450VDC Wide PV Voltage Range maximizes solar panel compatibility. less than 20ms grid-to-inverter transition ensures zero downtime for critical loads (office devices/Household Electric Appliances/security systems). Supports solar/grid/generator triple charging with 10,000VA surge capacity to power motors (pumps/AC units/power tools).
• Advanced Technical Specifications】 Rated Output Power: 5200VA, Maximum PV open circuit voltage: 500Vdc, PV operating voltage range: 120-500Vdc, MPPT voltage range: 120-450Vdc, Maximum PV input power: 6000W, Peak power: 10400VA, Max.PV input current：22A, Max charger current (can be set): 100A, Rated input voltage: 110/120Vac, Input voltage range: (90Vac~140Vac)±2%, Frequency: 50Hz/60Hz, Phase: 120V (single phase), 120V/240V (split phase), 208V (2/3 phase), support parallel. Support CAN, USB, and
• 【Scalable Energy Hub | 360° Protection 】 6-Unit Parallel Ready – Stack inverters for 240V split-phase (2 units) or 3-phase 208V (3 units). Expandable via 6-in-1 parallel kit (31.2kW total) for split-phase 240V/3-phase 208V setups. CAN/USB/RS485 ports enable smart monitoring via App. Also, it features full system protection, including protection against short circuits, over/under voltage, overload, and backfill, among other features
• 【High-Quality Configuration】Equipped with a 2P-125A battery power circuit breaker, a 2P-25A photovoltaic input circuit breaker, and 2x 2P-63A AC input/output circuit breaker, this PV distribution box also features built-in DC and AC surge protection to effectively prevent lightning strikes and ensure the safety of solar energy systems. The PV input terminal comes with built-in solar connectors for simple connection to the photovoltaic array, offering plug-and-play functionality.
• 【Accessories and Services】This package includes 1 distribution box, 2 DC circuit breakers, 2 AC circuit breaker, and 2 surge protection devices. We also offer customer service with a response time within 24 hours. If you have any questions or concerns, please don't hesitate to contact us anytime.
