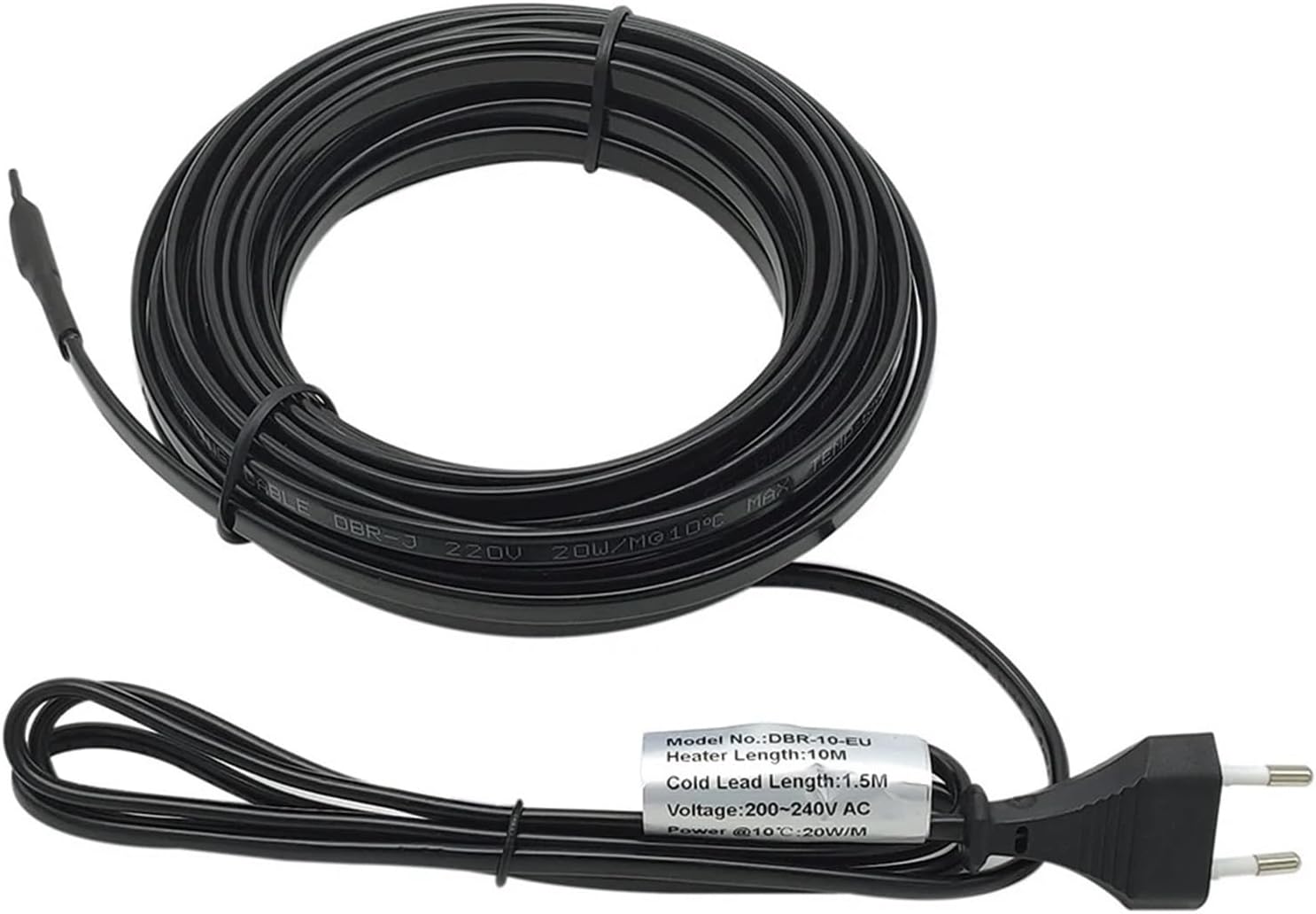

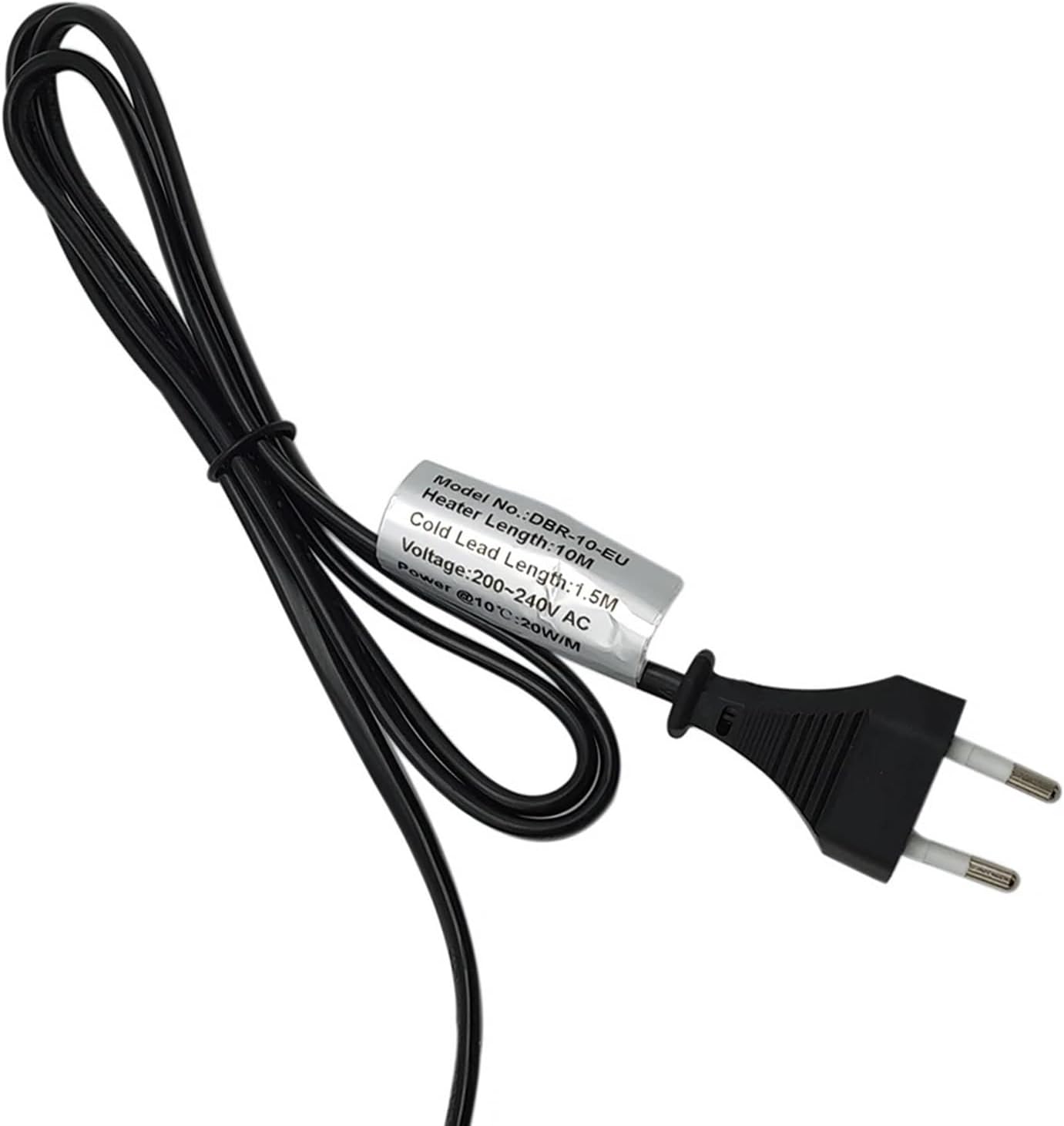

Heating Cable with EU Plug Power Cord Self Regulating Heating Cable for Water Pipe Freeze Protection Pets Heating Element (Color : 10 m) (10 M)

Heating Cable with EU Plug Power Cord Self Regulating Heating Cable for Water Pipe Freeze Protection Pets Heating ElementProduct Discription:The self-regulating heating cable developed widely used in fire protection,petroleum,chemical industry, iron and steel, electric power and so on tokeeppipes,tankswarm and prevent frostbite, roof and gutter snow melting.The cable is designed for house water pipe and solar upper water pipe freeze protection requirement in winter, to maintain the water in pipes above 0 centigrade, and do not need a controller.The cable is very easy to install, suit for metal and plastic water pipes.We use the pure copper as the conductor, and the PE jacket, it's durable, UV resist, better than PVC jacket.Product name:water pipe heating cable/self regulating heat trace cableVoltage: 220V 230V 240VPower: 20W/m @10 CelsiusLength of power cord: 1.5meterMax working temperature: 60CelsiusMin installation temperature: -40CelsiusStart-up current: less than 0.6 A/mMin. bend radius: @20C:25.4mm @-30C:35.0mmCable Structure:1. Pure copper conductor2. PTC heating element3. PE insulation Package Includes:1 x DBR heating cable with EU-plug( Length optional)NOTE:this cable is connected and sealed well, it's water-proof, you can plug into 220V socket to use directly!!1) Wrapthe heating cable on water pipes or fastening straight on pipes, both are ok. Put the whole cable on the pipes and fasten it every 30~60cm with thermal tape or aluminum tape(sold in my store).2) Suggest to wrap a layer of rubber insulation on the pipe, enhance efficiency of the heating cable and save energy, also can protect the heating cables.3) Plug into 220~240V. The heat trace system is finished.

• There is a uniform core strip ofPTC materialbetween the two parallel metal busbars.When the two busbars at one end of the cable are connected to the power source, current flows laterally from one busbar through the PTC material layer to the other busbar.The PTC layer is a resistance heating body that is continuously connected in parallel between the busbars to convert electrical energy into heat. The core strip resistance increases with temperature, reaching about 65 degree
