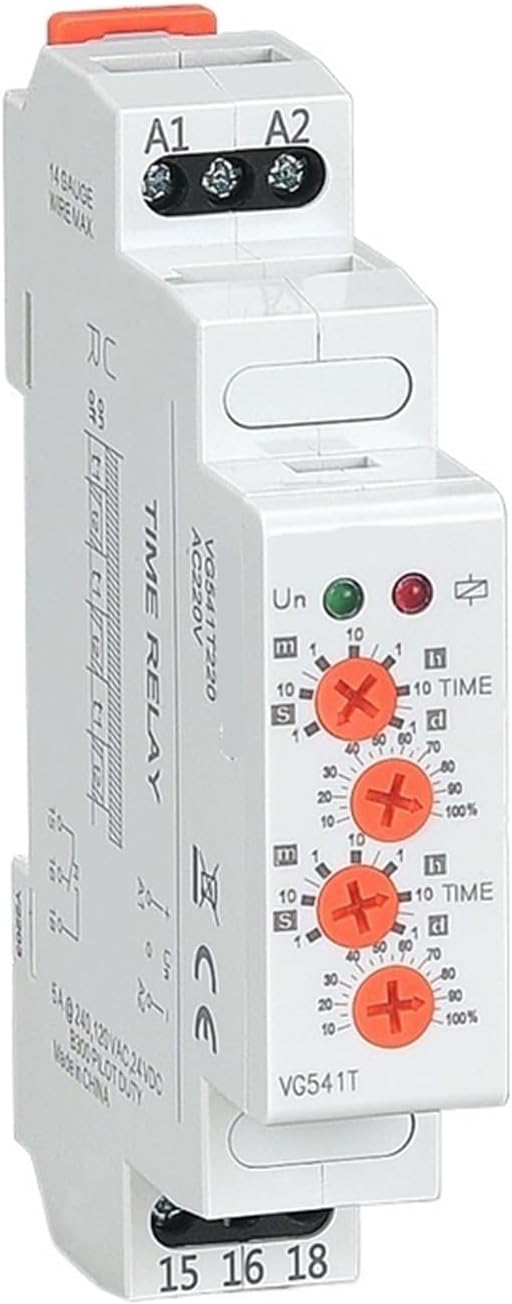

DEBLAN Asymmetric Cycle Timer Relay 12v 24v 220v 230v AC/DC Electronic Repeat Modular Time Relay by DIN Rail Type (Size : AC DC 12-240V)
Product details
| Management number | 210285356 | Release Date | 2026/04/02 | List Price | $12.72 | Model Number | 210285356 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

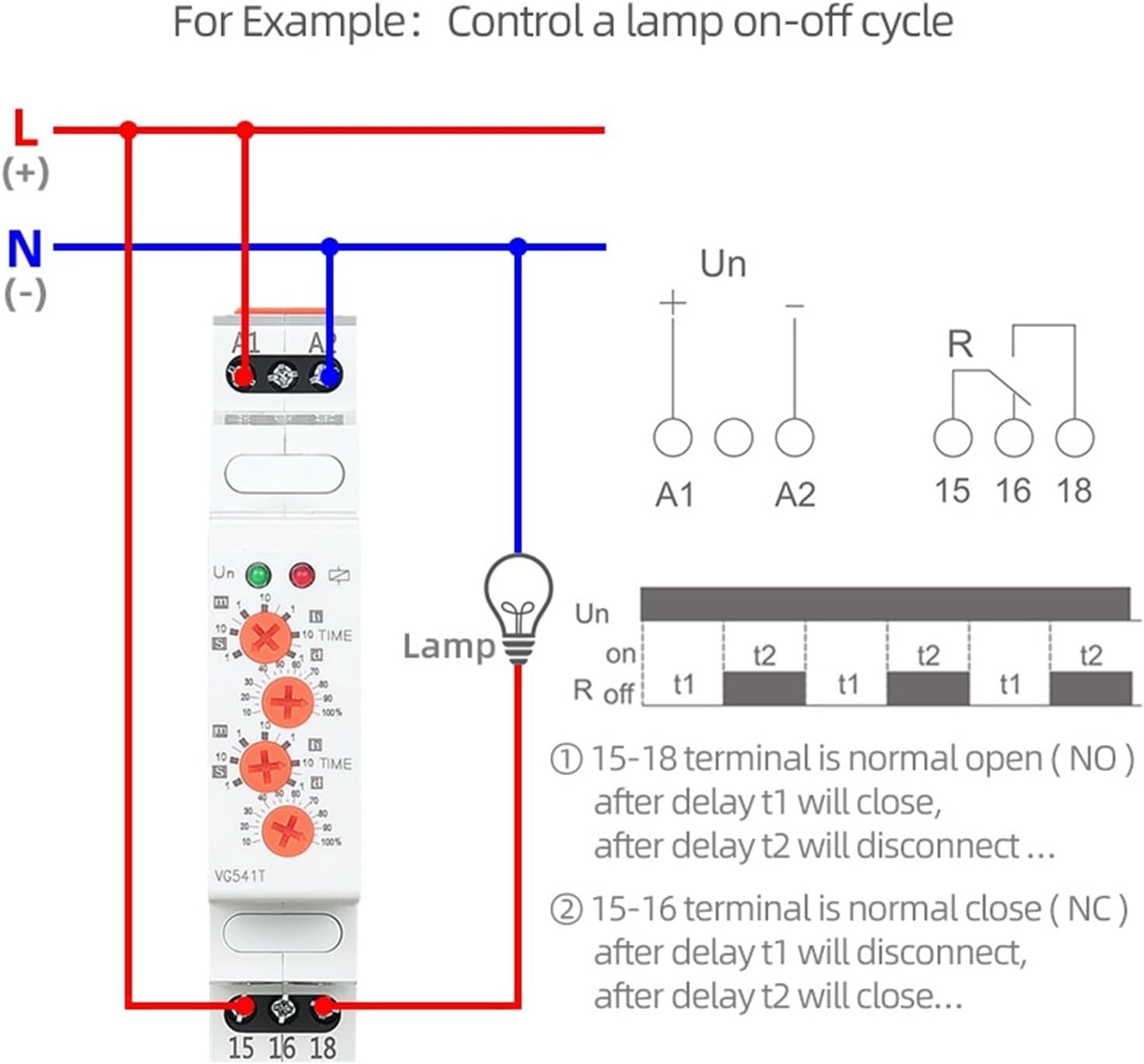

Relay type:Asymmetric Cycle Time RelayFunction Description:Repetitive cycle comprises of two, independently adjustable timing periods t1 and t2. Each timing period corresponds to a different state of the output R.Technical data:Rated supply voltage:220 VAC or 12-240 VAC/DCSupply frequency: 50/60 HzTime delay range:0.1 Second - 1 DayOperating temperature:-20~+55Storage temperature:-30~+70Setting accuracy-full range:±5%Contacts type:1 C/O (SPDT)Rated current:5A/240 VAC,24 VDC (Resistive Load)Discrete Output Type:RelaySize:Width (18mm) × Depth (65mm) × Height (90mm)Applications:Automatic door and gate openers, building automation, cranes, pump controlpanels and pumping units, automated awnings, blinds, shutters, elevators,control systems, timers and lighting controls.Delay time for OFF (pause) interval, adjustable on front by rotary switch: 10...100%Delay time for ON (work) interval, adjustable on front by rotary switch: 10...100%Green indicator for power onRed indicator for relay state; flashing for delay and steady when relay energised"Blade + cross" both flat blade and crosshead screwdrivers can be use on rotary selectors and terminals35 mm Din rail mount
- 【Easy to use】The Voltage Protection Relay does not require an external power supply.
- 【Safe Design】The shell is made of flame retardant material, which is safe for daily use.
- 【Main Usage】Used for the protection of over-voltage, under-voltage or over-current in the distribution line of residential household box or the protection of single-phase power equipment.
- 【Features】Line has overvoltage or undervoltage, overcurrent condition, the product can cut off the power supply instantaneously, the electrical equipment from damage; when the line voltage returns to normal, the protector can automatically and normally
- 【We Promise】：If you have any problem with your item, please feel free to contact us ,we will reply within 24h.
| Color | One Color |
|---|---|
| Brand Name | DEBLAN |
| Unit Count | 1.0 Count |
| Item Weight | 500 Grams |
| Manufacturer | DEBLAN |
| Model Number | DEBLAN |
| Manufacturer Part Number | DEBLAN |
| Item Dimensions D x W x H | 2.56"D x 0.71"W x 3.54"H |
