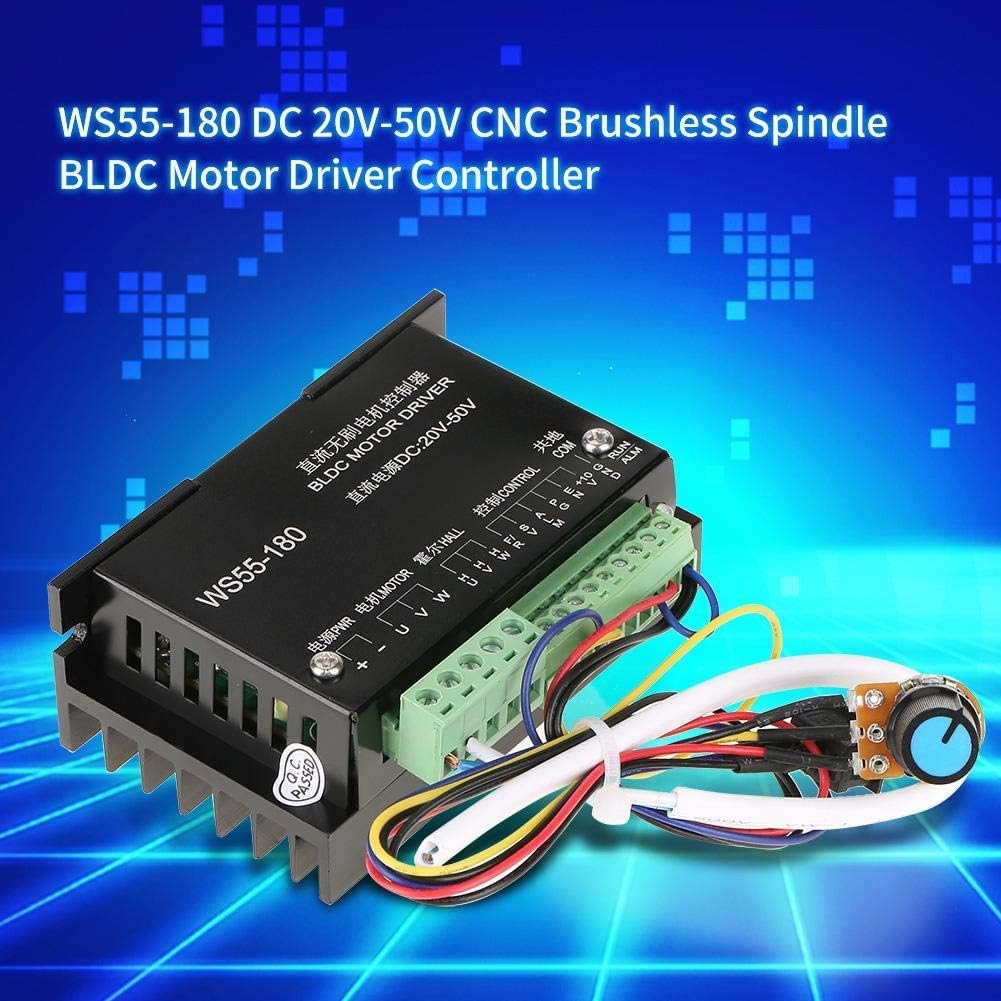

Brushless Motor Driver Controller, WS55-180 DC 20V-50V Spindle BLDC DLDC Motor Driver Controller

Features: The driver is based on advanced technology and be provided with high speed, high , low noise, low vibration, over current , overload , less phase line. , phase line short , alarm output, speed output, positive negative rotation control etc. Specifications: Rated voltage:20 to 50 VDC Rated current: 10A Current limiting:15A Maximum speed: 20000RPM( the specific speed depends on the motor itself and load) Storage temperature: -20~+65 Usage environment: Avoid direct with dust, fumes and corrosive gases Temperature: 0-45 Humidity: <80%, no frost, frost Shock: 5.9m/ Storage humidity: 0~95%RH Size: 9.5 * 7 * 3.5cm / 3.74 * 2.76 * 1.38inch Weight: 260g Package included: 1 x Motor Driver Controller with cable

• ✔【BLDC Motor Controller】- WS55-180 is a high performance,cost-effective 3 phase BLDC motor controller.Voltage range is from 20VDC to 50VDC. Rated current: 10A. Current limiting:15A. Storage temperature: -20℃~+65℃. Maximum speed: 20000RPM( the specific speed depends on the motor itself and load)

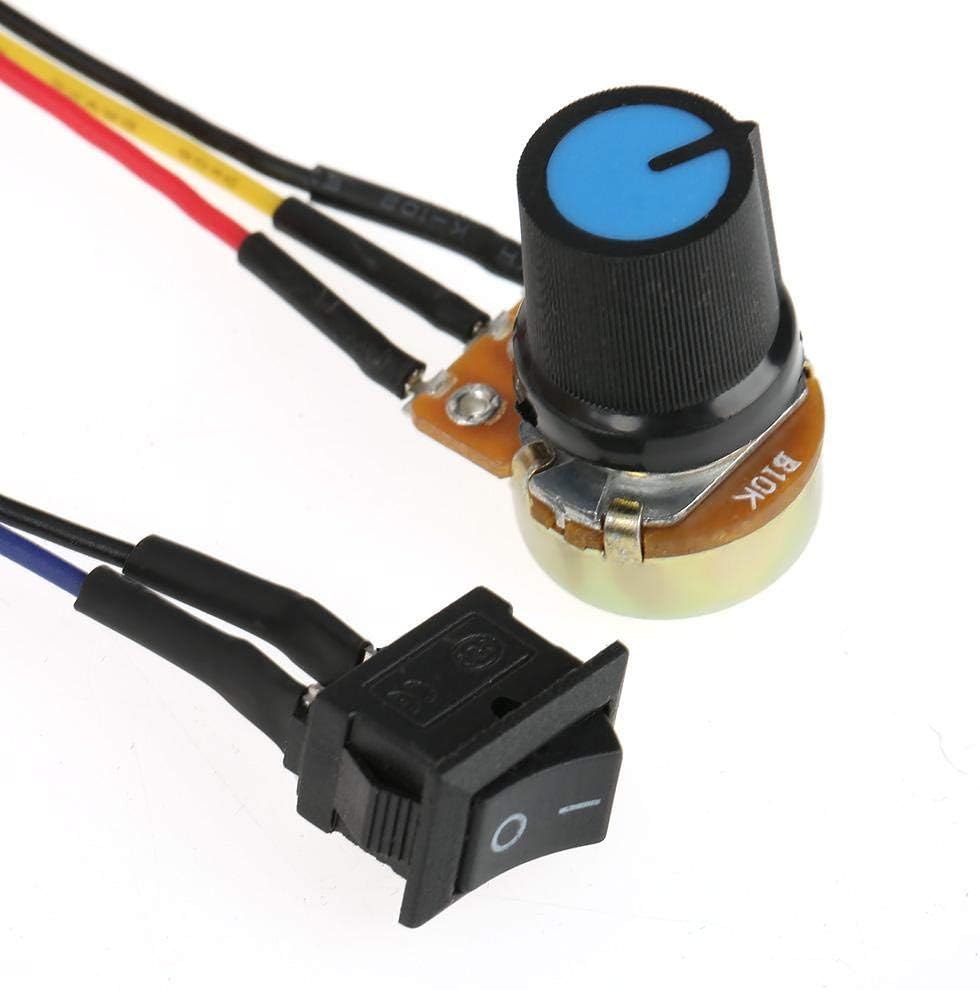

• ✔【Advantages 】- The controller can drive the DLDC motor with HALL or without HALL.Two modes of speed regulation: External potentiometer: through this potentiometer speed regulation; External voltage: external 10VDC voltage speed regulation. Please note the two speed regulation can not be used simultaneously.
• ✔【Characteristic】- The driver is based on advanced technology and be provided with high speed, high , low noise, low vibration.
• ✔【Multi-】- The motor driver controller with overvoltage , over-current , locked-rotor , phase line short , alarm output, speed output, positive negative rotation control etc.
• ✔【 Apply To】- This controller can be used in small equipment, Electric Power Tools, exhaust Fan, Jade grinding machine, Vibrating motor etc.
