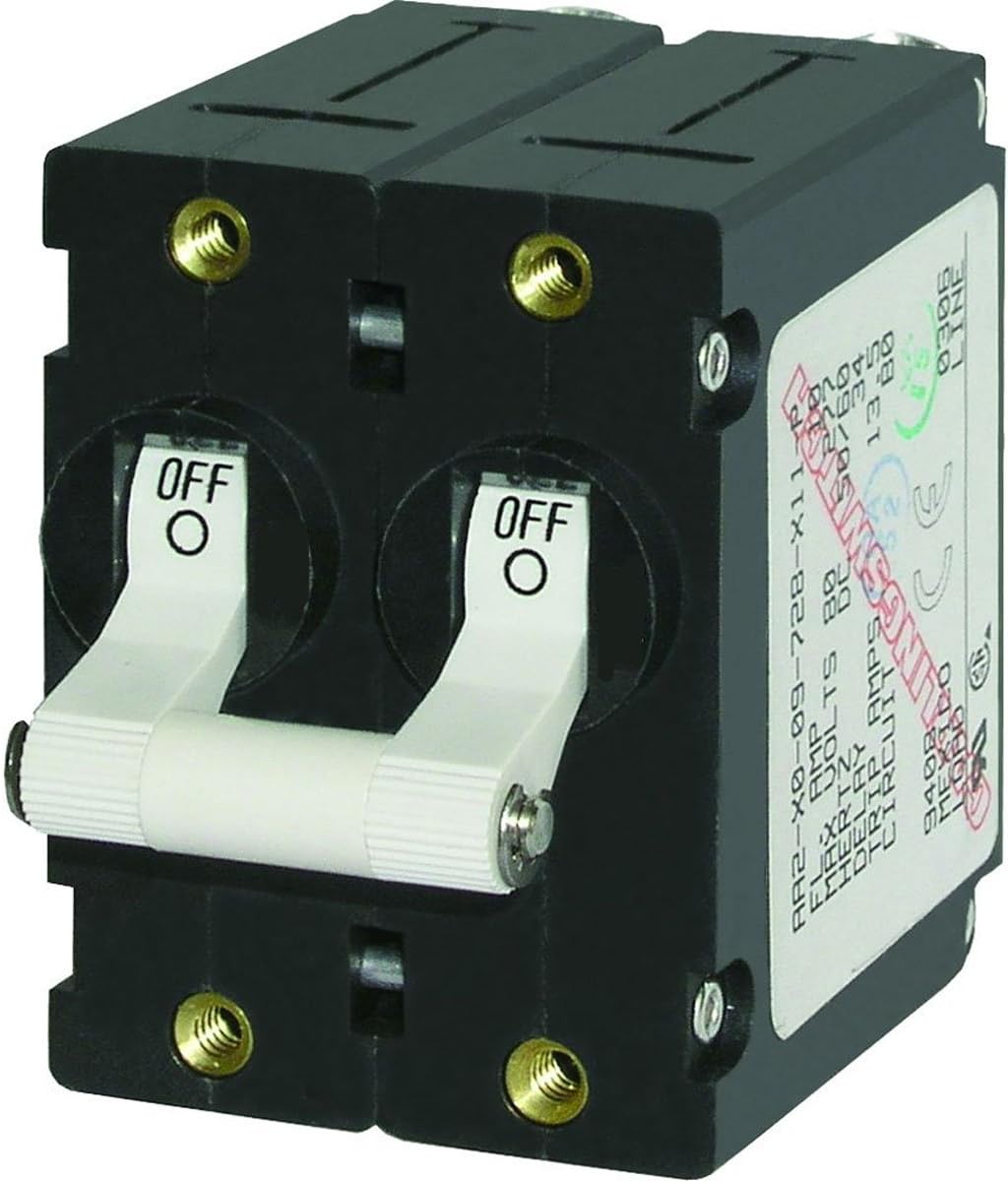

Blue Sea Systems A-Series Toggle Double Pole Circuit Breakers
Product details
| Management number | 209028071 | Release Date | 2026/03/29 | List Price | $17.94 | Model Number | 209028071 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
C-Series Toggle Single Pole. PN: 7250. Poles: 1. Color: White. Amperage: 100A. Features: Provides overcurrent protection for inverters, bow thrusters, and windlasses. Combines switching and circuit protection into a single device. Trip Free - cannot be held closed after trip
- Amperage: 30A AC/30A DC, Color: White, Actuator Style: Toggle, 2 poles, Max Voltage: 120V AC/ 240V AC/ 65V DC, Interrupt Capacity: 3000A @ 120V AC/ 3000A @ 240V AC/ 1500A @ 240V AC [TUV]/ 3000A @ 240V AC [UL 1077]/ 7500A @ 65V DC, Mounting Screw Torque: 6 in-lb (0.68 Nm), Screw Terminal Torque: 14 in-lb (1.58 Nm)
- The industry standard circuit breaker for Blue Sea Systems' electrical panels
- Combines switching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
- Meets American Boat and Yacht Council (ABYC) standards
| UPC | 632085072384 |
|---|---|
| Model | 7238 |
| Voltage | 120 Volts |
| Brand Name | Blue Sea Systems |
| Unit Count | 1.0 Count |
| Item Weight | 4.8 ounces |
| Part Number | 7238 |
| Manufacturer | Blue Sea Systems |
| Mounting Type | Panel Mount |
| Current Rating | 30 Amps |
| Item Type Name | CIRCUIT BREAKER AA2 30A WH |
| Number of Poles | 2 |
| Included Components | CIRCUIT BREAKER AA2 30A WH |
| Circuit Breaker Type | Standard |
| Warranty Description | LIMITED WARRANTY |
| Item Dimensions D x W x H | 3"D x 2"W x 5"H |
| Global Trade Identification Number | 00632085072384 |
