8.3 MP 4K HD Microscope Measure Camera HDMI/USB Output

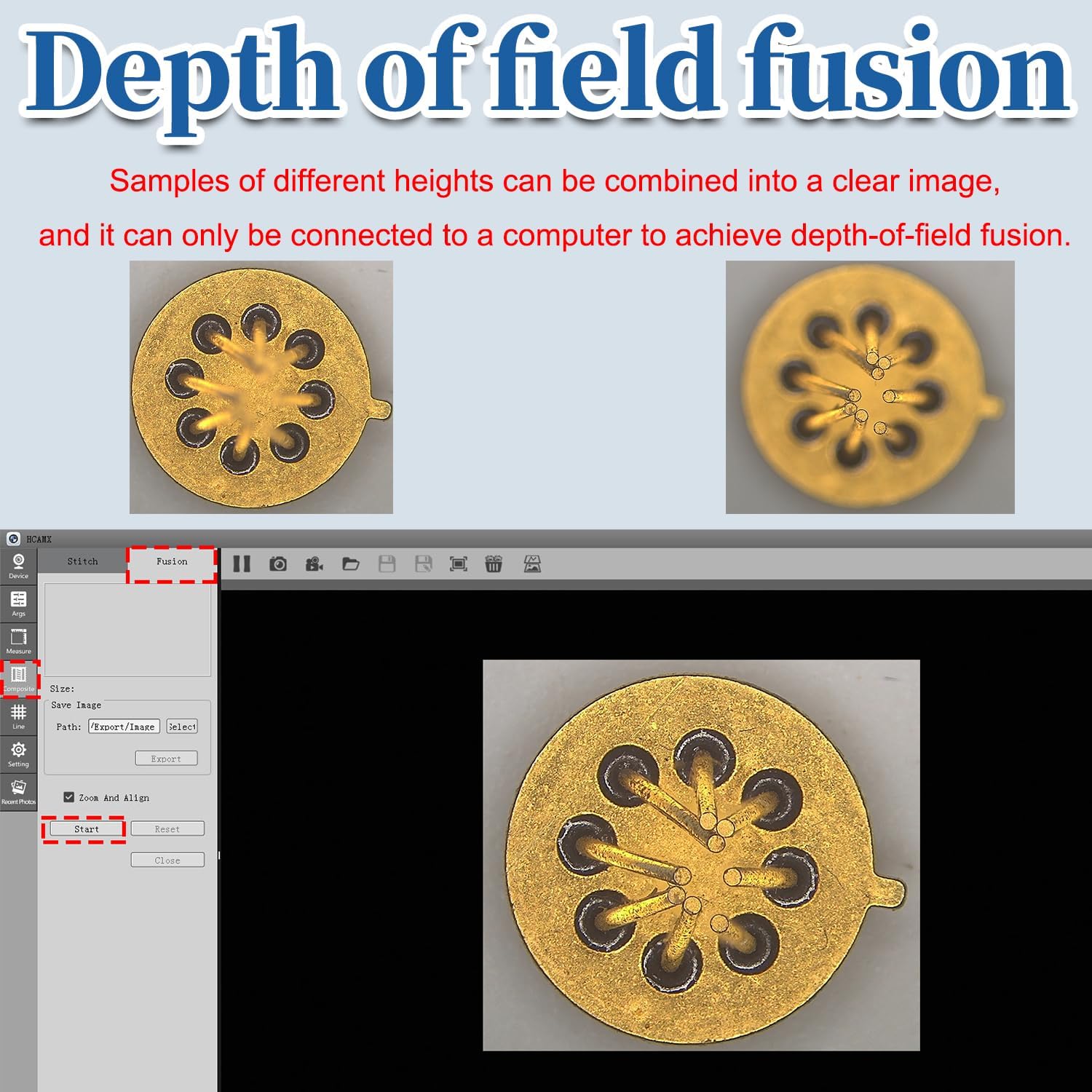

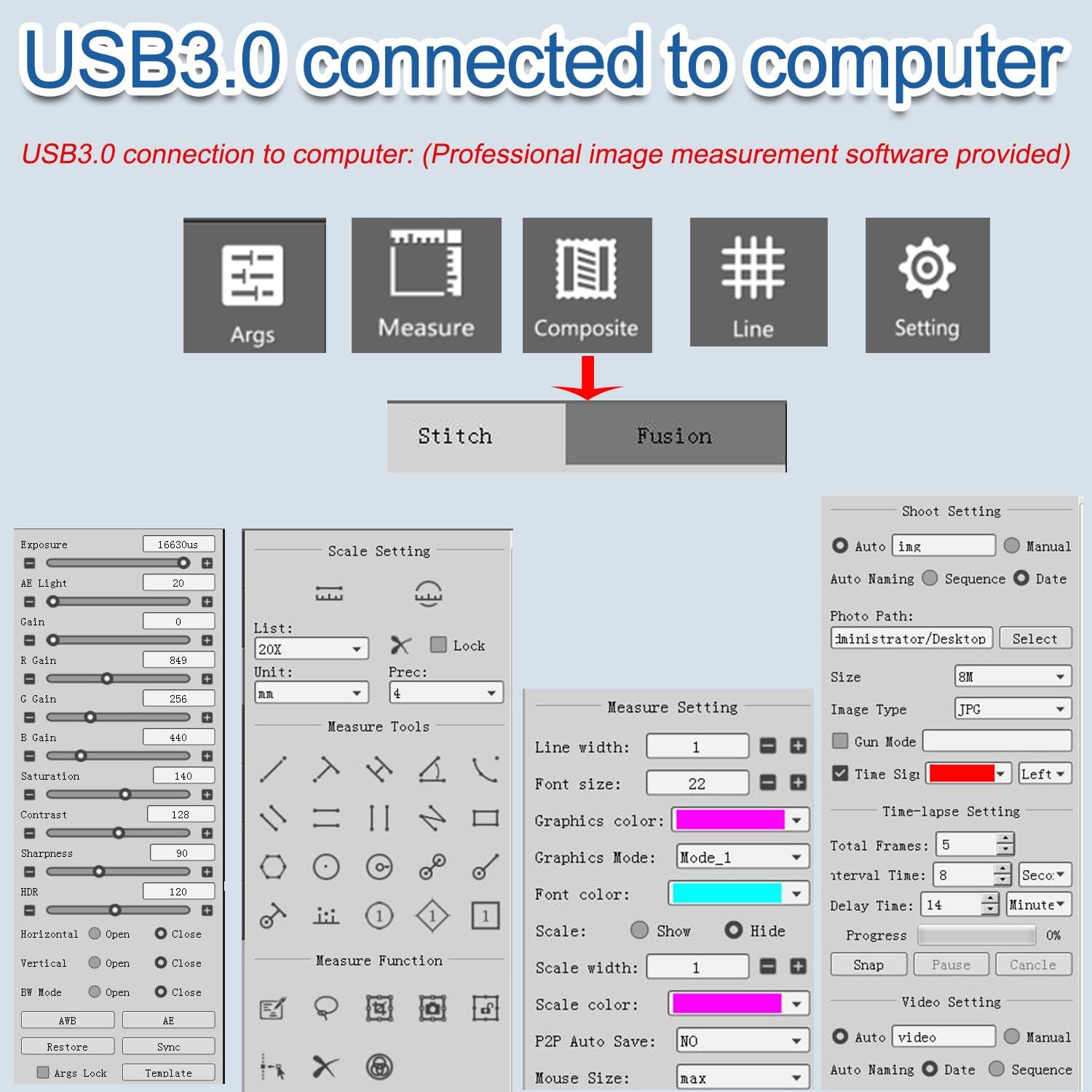

Model KP-4KCH-VM Pixel 8.3 Million Pixels Output Method HDMI、USB3.0 Sensor 8.3M Sensor Size 1/1.8＂CMOS Resolution Ratio 3840X2160 Output Frame Rate 60FPS Pixel Size 2.0μmX2.0μm Photographic Resolution 3840X2160,(Photo can be Manually and Automatically Named file Name) JPG Format Video Resolution 1080P 30 Frames (1920X1080) MP4 Format Image Adjustment Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback Color Adjustment R、G、B White Balance Auto/Manual Exposure Auto/Manual Menu Operation Mouse Operation Storage Mode U disk.Can Take Pictures.Video,and Measure Reticle lines 100 Groups Horizontal and vertical lines Camera Interface C Interface Power Supply AC100V-240V DC-12V USB3.0 By connecting to a computer via a USB3.0 interface, image stitching and depth synthesis can be achieved. Measuring Function Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching Packing List 1、4K Camera *1 2、HDMI HD Line *1 3、The Camera Power Adapter *1 4、Calibrating Ruler *1 5、USB 3.0 cable *1 6、Software *1 Note 1. This product features HDMI/USB3.0 output. It can be directly connected to a monitor via an HDMI cable or connected to a computer via a USB3.0 interface for use.Provide professional imaging software. 2. This product has two USB ports, one for connecting to a mouse and the other USB 3.0 for connecting to a computer. (You can also set up an interface to connect to a USB drive and an interface to connect to a mouse). 3. Connecting to a computer can achieve image stitching and depth of field synthesis.

• Pixel:8.3 Million Pixels
• Resolution Ratio:3840 X 2160

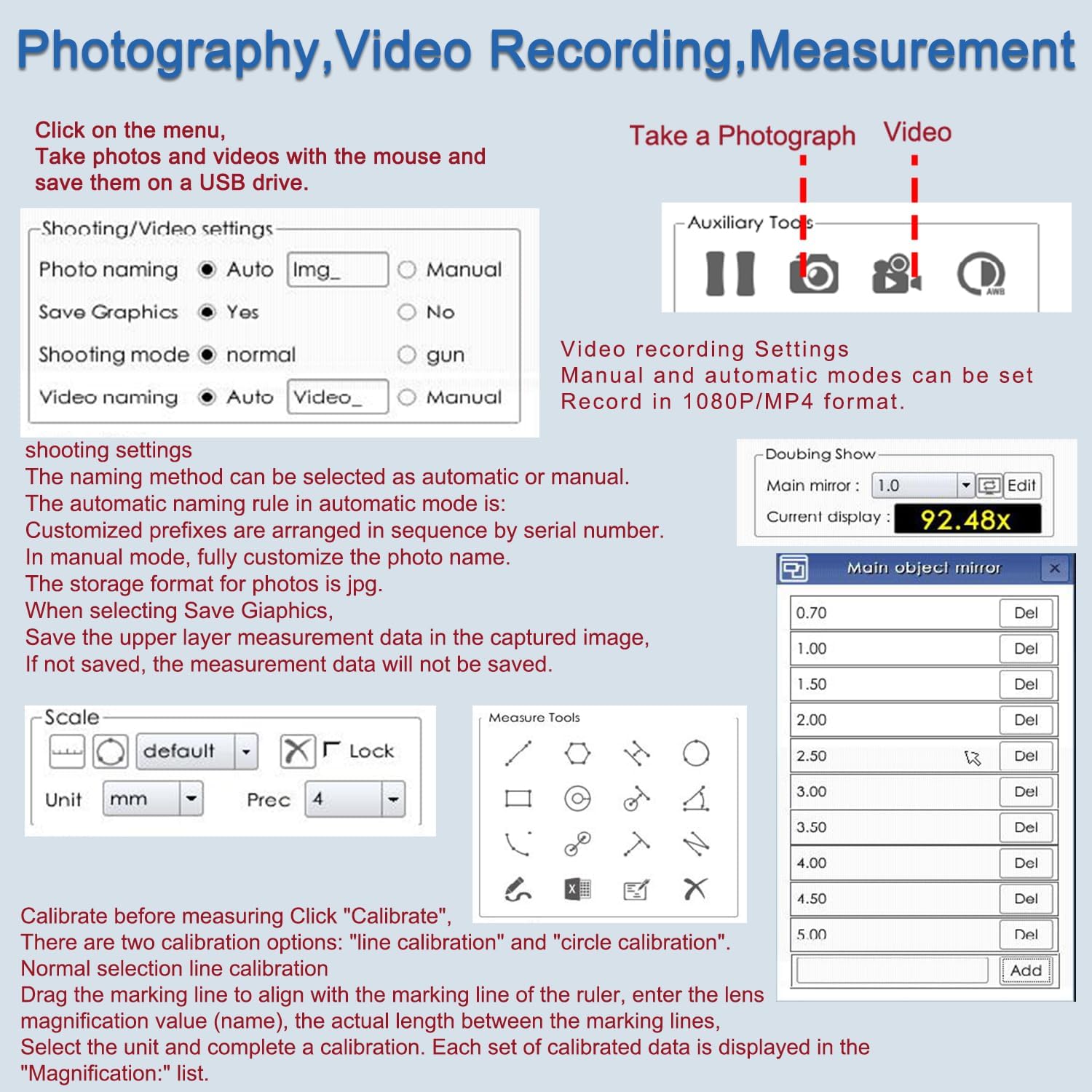

• Measuring Function: Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching
