1 Pair Full Extension Drawer Slides 480lb Load Capacity Locking Rail Side Mount Ball Bearing Rails Industrial Guide Glides 3 Inch Width Tool Box Runners(1016mm/40inch)

Welcome to my store Specifications Material: Cold-rolled steel Finish: Galvanized Quantity: 1 pair (2 pieces), including mounting screws Weight capacity: 480 lbs / 220 kg Main Features With Locking Function Includes inner slide, middle slide and outer slide. Gently pull up/down the locking handle to lock/unlock the extension drawer slide. Silent Design Details Nylon buffer reduces direct contact between the outer and inner channels. Ball bearing action creates a quiet environment when working. Cold Rolled Steel High-grade cold rolled steel with galvanized surface can effectively prevent the drawer rail from scratching, deformation and rust. Please refer to the above guide to select the appropriate size of drawer slide. The length of the slide cannot exceed the depth of the cabinet. Easy and Quick Assembly During installation, the bolts between the slide and the drawer are best tightened from the outside to the inside, and the bolts between the drawer and the cabinet should be tightened from the inside to the outside. Wide Applications Side-mounted drawer slides are suitable for a variety of uses: shelves, cabinets, industrial drawers, RVs, trucks, vending machines, etc.

• 【Installation note】The space between drawer and cabinet wall need to be 0.75in each at left and right side,total 1.5in ( inside cabinet width - outside drawer width= 1.5in )一 Note:For installation,make sure the two slide rails parallel to each other,and make sure the drawer portion slides parallel to the cabinet portion slides and in the same level.
• 【MAXIMUM LOAD CAPACITY:480 lb】The slides is made of 2.50mm thickness high-density cold-rolled steel plate,it will keep your drawers stable and safe even carrying up to 480 lb heavy weight items. Note:The shorter the slide,the heavier the weight load.
• 【With hold-still lock 】 There is a blue handle to lock and unlock.When it is fully extension or fully closed,the slides will be hold still automatically (in locking state),which can prevent from sliding casually and keep your drawer stable and safe. Press the lock handle gently,it's unlocked and get back in free sliding.

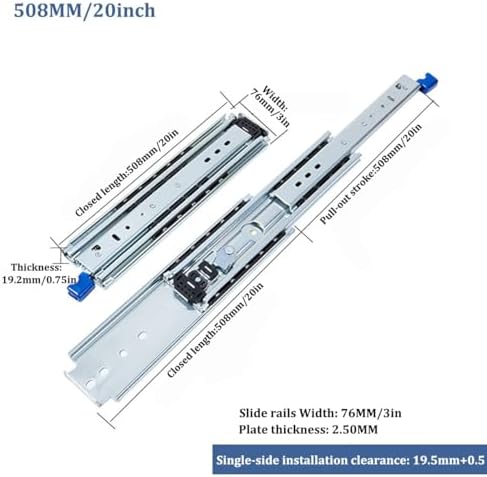

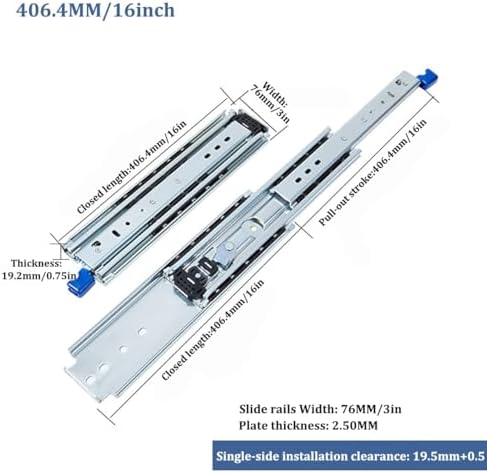

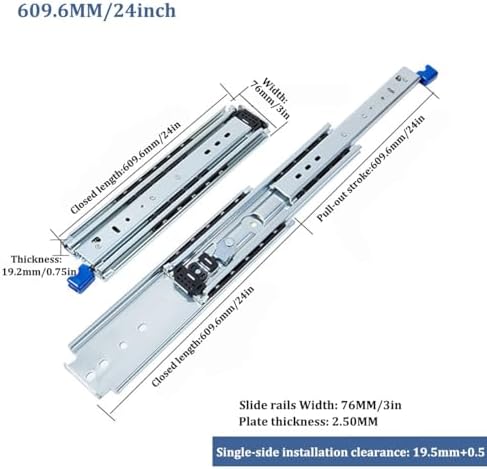

• 【3-fold full extension】Slides Width: 3" (76mm)-Maximum load-bearing: 480 lb/220 kg. The “3-fold full extension”enable the slides to fully extend, so the drawer can be pulled out completely, which allows for the entire drawer’s storage to be accessed easily;
• 【Electroplating blue zinc treatment】The drawer slides' surface are treated with electroplated blue zinc, Application range: Goods shelf, Industrial drawers,Mechanical Cabinets, RV, Truck, Vending machine,safety drawers, exhibition drawers, heavy truck drawers,etc.
